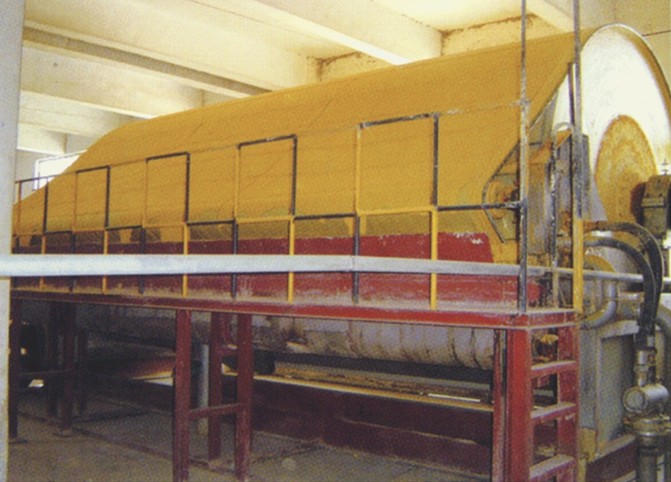

GD model belt vacuum filter is a filtering machine,which is used for continuous filtration,dehydration,material unloading by vacuum action.It is ideal for concentration with features of low concentration,fine particles and higher viscosity.It is widely used for protein dehydration in corn starch processing.
GD model belt vacuum filter is a filtering machine,which is used for continuous filtration,dehydration,material unloading by vacuum action.It is ideal for concentration with features of low concentration,fine particles and higher viscosity.It is widely used for protein dehydration in corn starch processing.
GD model belt vacuum filter is a filtering machine,which is used for continuous filtration,dehydration,material unloading by vacuum action.It is ideal for concentration with features of low concentration,fine particles and higher viscosity.It is widely used for protein dehydration in corn starch processing.
Main Specifications and Technical Prarameters
|
|
GD20
|
GD30
|
GD35
|
GD40
|
GD50
|
|
Work area(m²)
|
20
|
30
|
35
|
40
|
50
|
|
Vacuum degree(mpa)
|
0.04-0.08
|
0.04-0.08
|
0.04-0.08
|
0.04-0.08
|
0.04-0.08
|
|
Feeding concentration(g/l)
|
110-130
|
110-130
|
110-130
|
110-130
|
110-130
|
|
Output (tm-2d-1)
|
12-16
|
18-24
|
21-28
|
24-32
|
30-40
|
|
Power(kw)
|
3
|
3
|
4
|
4
|
4
|
|
Weight(kg)
|
8500
|
11200
|
13300
|
14700
|
17400
|
1.We are in charge of after service warranty within half a year in condition that the client conform to instruction rules.
2.We will charge accordingly due to wrong operation and maintenance.
3.We will accept change or return of the product only after technical confirmation if the machine still can not work after maintenance.
4.Warranty is not provided without inspection certificate, instruction book, invoice and machine model number.
5.Damage occurred jointly during maintenance should be in the charge of clients.
